Hybrid Molding

Tri-Mack has expertise in both one-step and two-step hybrid molding.

One-Step Hybrids

Laminates are heated to the melt point at injection molding, enabling forming within the injection mold.
Eliminates forming tools and process steps while promoting a high-strength bond.

Two-Step Hybrids

Laminates are formed prior to molding, enabling multiple pieces of composite to be used within the part.
Lower melt composite or surface heating needed for the melt bond.

Laminates are heated to the melt point at injection molding, enabling forming within the injection mold.
Eliminates forming tools and process steps while promoting a high- strength bond.
Automated one-step processing with in- mold thermoforming and high- strength overmold bond
Allows for same-material hybrids, such as PEEK continuous composite combined with PEEK injection molding compound
Fully automated robotic injection molding cell
In-mold forming and assembly
Reduced tooling costs and process steps
Automation ensures high-quality, low cost components

Laminates are formed prior to molding, enabling multiple pieces of com- posite to be used within the part.
Lower melt composite or surface heating needed for the melt bond.

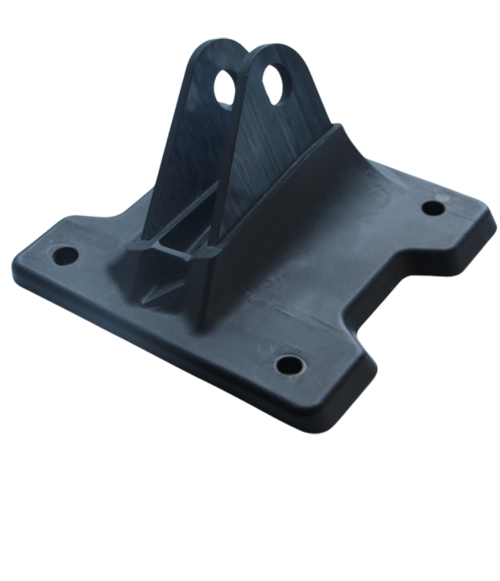

Multi-piece composite using a two- step overmolding process
50% weight and 20% cost savings vs. machined aluminum
PAEK laminates overmolded with PEEK
